A 10kW solar system is one of the most popular choices for large homes and small businesses in Karachi.
Read: 5kW Solar System Price in Karachi (2025 Guide)
With KE bills rising every month, this system size can cover heavy loads like multiple ACs, a refrigerator, TVs, and kitchen appliances while also slashing electricity costs.
In this guide, we’ll cover everything you need to know about the 10kW solar system in Karachi (2025), its prices, its components, energy output, savings, and payback period—so you can decide if it’s the right choice for you or not.
- What is a 10kW Solar System?
- 10kW Solar System Price in Karachi (2025)
- Components of a 10kW Solar System (with Prices)
- Panel Brand Options for 10kW Systems
- Power Output of a 10kW System in Karachi
- KE Bill Savings with 10kW Solar
- Payback Period in 2025
- Factors Affecting Price in Karachi
- Is a 10kW System Right for You?
- Final Thoughts
- FAQs
What is a 10kW Solar System?
Unit Production
A 10kW system produces around 1200–1350 units per month in Karachi. This makes it suitable for households with a KE bill of Rs. 60,000 or more.
However, actual unit production can vary. The type of solar panels, inverter efficiency, roof direction, installation angle, seasonal weather, and even dust on panels can affect how many units you get.
Here’s a unit production estimate table:
| Production Period | Estimated Units in Karachi |
|---|---|
| Daily | 40-45 Units |
| Monthly | 1200-1350 Units |
| Annual | 14000-16000 Units |
💡 These numbers are averages. In peak summer, you’ll often see higher production, while in cloudy weather, it may dip slightly.
What can it run?
A 10kW solar system produces around 1200+ units every month, which makes it powerful enough to run most home appliances.
Read: How many solar panels are required for 1.5 ton AC?
It’s important to remember that you won’t always run all appliances at the same time.
The actual performance depends on how many devices are switched on together and their wattage consumption. Still, a 10kW system can comfortably handle the following load:
| Appliance | Quantity | Wattage (Total) |
|---|---|---|
| 1.5 Ton Inverter AC | 3 | 5400W |
| Fans | 6 | 500W |
| LED Bulbs | 15 | 300W |
| Refrigerator | 1 | 700W |
| LED TV | 2 | 300W |
💡 This is just an example setup. If you add more ACs or other heavy appliances, you may need to adjust usage, especially during peak load hours. With net metering, excess production can even be exported back to KE.
10kW Solar System Price in Karachi (2025)
Here’s the latest cost breakdown for different system types:
| System Type | Price (PKR) | Best For |
|---|---|---|
| On-Grid | Rs. 1,450,000 – 1,550,000 | Homes with stable KE supply + net metering |
| Hybrid | Rs. 1,650,000 – 1,850,000 | Homes facing load-shedding need backup |
💡 Note: Prices vary by brand, inverter choice, and battery size.
Read: Solar with Battery vs Generator- Which Backup Power is Better for Karachi?

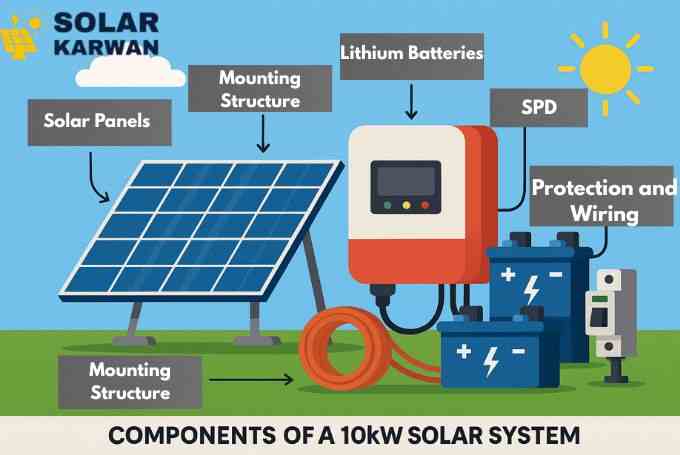

Components of a 10kW Solar System (with Prices)
A 10kW solar system isn’t just about panels and an inverter; rather, it’s a complete setup of different parts that work together to keep your home powered.
Moreover, the quality of each component affects not only the price but also the performance and lifespan of your system.
Read:Solar System Price in Karachi 2025: What You Need to Know
Below is a detailed breakdown of the main components with their price ranges in Karachi:
| Components | Details | Price Breakdown (PKR) |
|---|---|---|
| Solar Panels | 4–28 Tier-1 panels (370–500W each) | Rs. 850,000 – 1,000,000 |
| Inverter (On-Grid) | GoodWe / Solis / Huawei | Rs. 300,000 – 400,000 |
| Inverter (Off-Grid) | Growatt / GoodWe / Inverex / Sungrow | Rs. 450,000 – 600,000 |
| Batteries (Optional) | 2–4 Lithium batteries (5kWh each) | Rs. 400,000 – 800,000 |
| Mounting Structure | Tilted, galvanized steel for Karachi rooftops | Rs. 150,000 – 200,000 |
| Protections and Wirings | DC breakers, SPD, cabling, earthing | Rs. 100,000 – 150,000 |
👉 If you only want to cut KE bills, go on-grid. If you need power during load-shedding, choose a hybrid system with batteries.
Panel Brand Options for 10kW Systems
Choosing the right solar panel brand is just as important as picking the system size.
Panel efficiency, warranty, and local support can make a big difference in performance.
Read: Which Solar Panel Is Best in Pakistan? (Latest Prices 2025 )
Here are the most popular panel brands for 10kW systems in Karachi:
| Brand | Wattage | Panels Needed | Why Choose it? |
|---|---|---|---|
| LONGi | 500W-600W | 16-20 | High efficiency, long lifespan |
| Jinko | 500W-600W | 16-20 | Affordable + strong local support |
| Canadian | 500W-600W | 16-20 | Great in low-light (monsoon) |
| JA Solar | 500W-600W | 16-20 | Durable, long warranty |
💡 If you want maximum output in Karachi’s sunlight, LONGi and Canadian are excellent. For budget-friendly setups, Jinko and JA Solar are strong options.
Read: Monocrystalline vs Polycrystalline Solar Panels: Which is Better for Karachi?
Power Output of a 10kW System in Karachi
One of the biggest questions homeowners/business owners ask is: how much electricity will my system actually produce?
Read: Best Affordable Solar Inverter Under PKR 200,000 in Karachi
Thanks to Karachi’s long sunny days, a 10kW system delivers consistent output all year.
| Period | Average Output |
|---|---|
| Daily | 40-45 Units |
| Monthly | 1200-1350 Units |
| Annual | 14,000-16,000 Units |
💁This output is enough to cover large households with 1-2 ACs, refrigerators, and other heavy appliances.
KE Bill Savings with 10kW Solar
Now let’s talk about the most important part—how much money you can save every month.
Read: How Much Can You Actually Save with Solar in Karachi?
Here’s a realistic comparison of KE bills before and after installing a 10kW system:
| Monthly KE Bill | After On-Grid | After Hybrid (With 2 Batteries) |
|---|---|---|
| Rs 60,000 | Rs 3,000-Rs 5000 | Rs. 5,000–8,000 |
| Rs 80,000 | Rs 4000-Rs 6000 | Rs. 7,000–10,000 |
👉 On-grid systems save the most if you apply for net metering, while hybrids provide backup during outages with slightly higher costs.
Read: How to Apply for Net Metering in Karachi 2025
Payback Period in 2025
The investment in solar quickly pays for itself. Based on current KE rates and system prices:
- On-Grid: 3.5–4 years (fastest, thanks to net metering)
- Hybrid: 4.5–5 years (batteries extend payback time)
💡 After the payback period, your system continues producing free electricity for 20+ more years.
Read: Best Solar Batteries in Karachi 2025(With Prices)
Factors Affecting Price in Karachi
The final cost of your 10kW system depends on:
- Panel brand and wattage (500W vs 600W)
- Inverter type (on-grid vs hybrid)
- Battery size and number
- Mounting structure (flat vs tilted)
- Installation charges
- Dollar rate and import taxes
- KE net metering charges
👉 These factors explain why system quotes often vary between companies.
Is a 10kW System Right for You?
Choose 10kW if:
- Your monthly KE bill is Rs. 60,000+
- You use multiple ACs and heavy appliances
- You want to export electricity via net metering
- You’re planning for long-term savings with a quick ROI
If your bill is lower (around Rs. 25,000–30,000), a 5kW system might suit you better.
Read: What’s the Best Solar System for You in Karachi?
Final Thoughts
A 10kW solar system in Karachi is a reliable solution for families and small businesses that want to reduce high electricity bills and achieve energy independence.
At Solar Karwan, we help you make informed decisions.
Our team researches the best solar brands, compares inverters, and breaks down real savings so you know exactly what you’re getting.
If you’re ready to go solar, WhatsApp Solar Karwan today for quality equipment, proper installation, Solar discounted packages, and strong after-sales support!
FAQs
Q)How many panels are required for a 10kW system in Karachi?
16–20 panels (500–600W each)
Q)How much space is needed?
Around 800–1000 sq. ft
Q)What is the monthly output of a 10kW system?
Around 1200–1350 units
Q)Can I get net metering on a 10kW system?
Yes, KE allows it for 10kW and above
Q)What is the warranty?
Panels: 25 years, Inverter: 5–10 years, Batteries: 3–7 years
